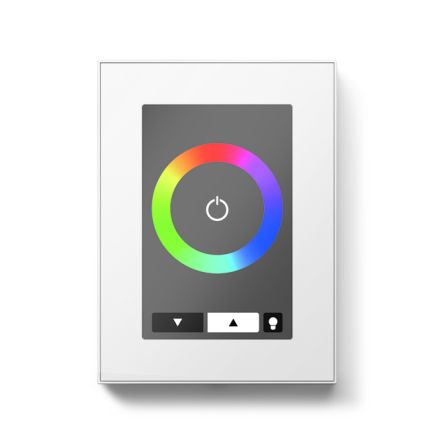

LUNATONE 24035465 DALI touch panel | standard

![CDATA[DALI Touch Panel Control Module Overview - Control device for DALI systems - 4 standard layouts for color and color temperature control as well as for switching and dimming - Individual layout design (from firmware 4.8) - Configuration via DALI cockpit and DALI USB interface - Multi-master capable, several modules can be used in one DALI system - Frame material made of plastic or aluminum - Customer-specific frame colors and directly printed surface for OEM - Easy installation on installation box - The module is supplied directly via the DALI line Specification, characteristics Electrical data: Supply: from DALI bus Typical current consumption: 4 mA Output: DALI Function: programmable Mechanical data: Dimensions: 111mm x 83mm x 9mm Temperature: 0 degrees Celsius - 50 degrees Celsius Protection class: IP20 Max. cross-section of the connecting wires: 2.5 mm² Housing material: ABS Frame color: RAL 9010]]>
