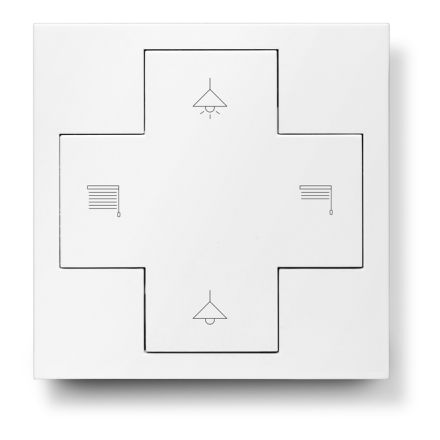

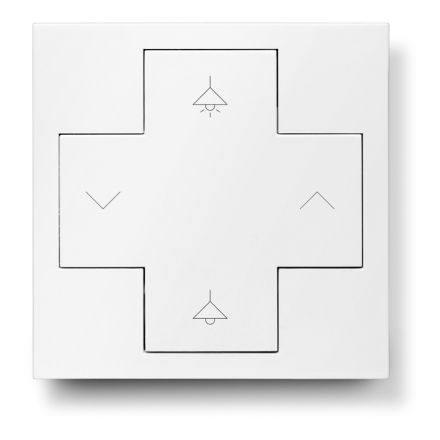

![CDATA[The LUNATONE 86459793-W16 DALI Switch Cross control module is a 4-way button control module with freely assignable functions (DALI commands). It enables basic control without configuration, supports individual addresses, groups or broadcast as the effective range and allows individual switching behavior for each button (short/long button press, changeover button, staircase). Each button can have up to 4 effective ranges with individual functions and supports color temperature for DALI DT8 lights. The module has a configurable power-up function, memory function for brightness and is powered via the DALI bus. It can be mounted directly on the wall or on an electrical box and has a protection class of IP20. The dimensions are 82mm x 82mm x 8.5mm, and it is available in traffic white (RAL9016). Note: The color may differ from the images.]]>
