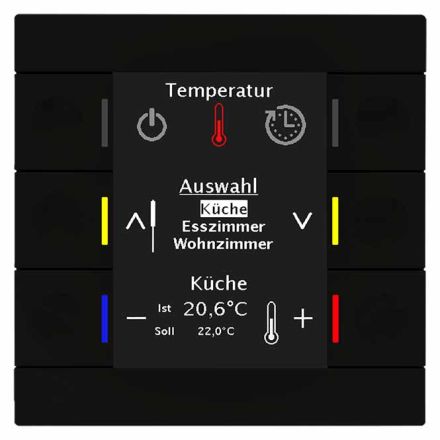

![CDATA[The KNX Smart 86 control center is made of matt black plastic and has 6 mechanical buttons with finger recesses, a large color display with automatic brightness adjustment and an RGB status display. It offers up to 24 functions, a timer and an integrated room temperature controller. It also enables four direct operating functions and 20 other functions via a menu (e.g. dimming, blinds, switching). A code lock (4-6 digits) secures the device settings. The daily/weekly/astro timer has 20 channels, each with 8 switching times, and a vacation function. Other features include ventilation control, temperature displays, status information, 6 independently controllable status LEDs and 6 logic blocks with 4 inputs each. The control center does not require an additional power supply and is mounted in a switch box with a support ring (86 x 86 mm, recommended mounting height: 1.60 m).]]>
