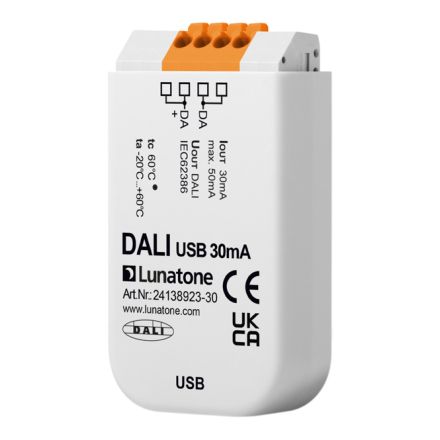

![CDATA[Interface module for communication between a DALI system and PC applications - bidirectional data traffic - for addressing, configuration, status queries, parameter specifications of DALI components - Support for standard DALI and various extended DALI protocols - Monitoring of DALI bus communication (monitoring) - galvanic isolation - Supply via the DALI bus and the USB interface - PC software DALI cockpit for configuration and monitoring of a DALI system - DALI terminals in double version for looping through the DALI bus connection Available in 5 versions: - Standard version - Mini - with integrated 30mA bus supply - for DIN rail mounting - with radio connection Specification, characteristics Dimensions (LxWxH): 59 x 32 x 15mm Housing/installation: Box typical Current consumption: USB: 40mA USB connection: mini cable Temperature: 0 degrees Celsius - 50 degrees Celsius Protection class: IP20]]>
