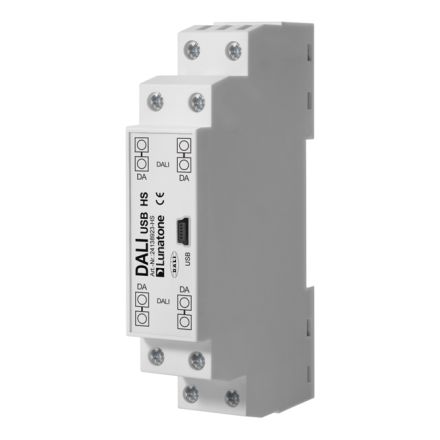

![CDATA[Interface module for communication between a DALI system and PC applications - bidirectional data traffic - for addressing, configuration, status queries, parameter specifications of DALI components - Support for standard DALI and various extended DALI protocols - Monitoring of DALI bus communication (monitoring) - galvanic isolation - Supply via the DALI bus and the USB interface - PC software DALI cockpit for configuration and monitoring of a DALI system - Available in 5 versions: standard version, mini, with integrated 30mA bus supply, for DIN rail mounting, with radio connection - DALI terminals in double version for looping through the DALI bus connection Dimensions: LxWxH 98x6551x18mm Housing/Installation: DIN rail Typical current consumption DALI: 6mA, USB: 10mA USB connection: cable Temperature: 0 - 50 degrees Celsius Protection class: IP20]]>
