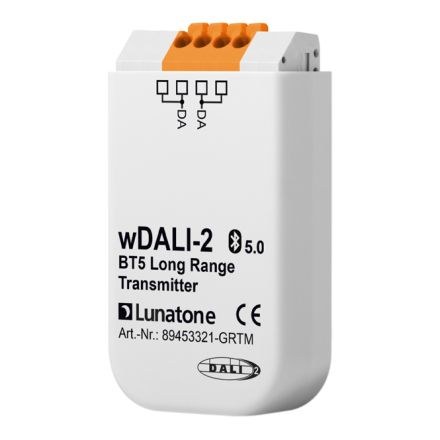

![CDATA[Modules for easy connection of spatially separated DALI loads to a DALI circuit via radio - At least one transmitter (transmitter unit) and one receiver (receiver unit) are required for the radio connection - Range of the radio connection up to 300m in the open field, in buildings typically 10m-20m - Simple configuration using the DALI cockpit and DALI USB interface - Forwarding of all commands that are sent to the selected group or broadcast - Support for DALI-2 control commands - Broadcast control of the sub-circuit - The transmitter is supplied by the DALI main circuit Technical data: Electrical data transmitter: Supply: DALI bus typical current consumption: 3.8 mA Input: DALI Function: forwarding of DALi commands via radio Radio technology: BT5 Long Range Technical data receiver: Dimensions: 59 x 33 x 15 mm Housing type: Box Cross-section: Connection wire 0.5 to 1.5 mm² Operating temperature: -20 to +75 degrees Celsius Protection class: IP20]]>
