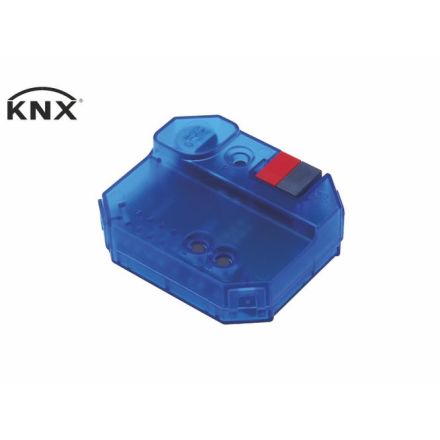

![CDATA[KNX RF to TP line coupler for building system technology - Filter table (8k bytes) - KNX-RF 1.R S-Mode - Radio repeater option can be activated - Compact dimensions Technical data: Connection voltage: via KNX bus voltage Bus current: <,10 mA KNX medium: KNX RF 1.R Application software: ETS5 Configuration mode: System mode (S-Mode) Radio frequency: 868.3 MHz Signal strength: 6 dB Range: Open field: 100 m, indoor area approx. 30 m Ambient temperature: -5 to +45 degrees Celsius Dimensions: 48 x 40 x 18 mm Installation: flush-mounted installation Connection type: KNX bus terminal Protection class: IP 20]]>
