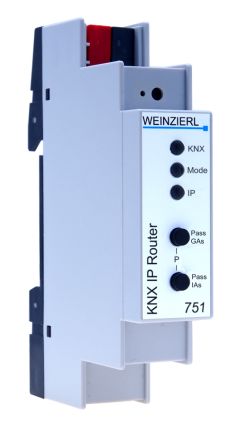

![CDATA[The new device has a compact design with a width of just 1 HP (18 mm) and is powered by the KNX bus. It enables telegrams to be forwarded between different lines via a LAN (IP) as a fast backbone and serves as an alternative to a KNX line coupler. The KNX IP Router 751 also functions as a programming interface for the ETS®. It has a comprehensive filter table and a large telegram buffer. Buttons and LEDs enable local diagnosis of the operating status and any communication errors. Technical data: Housing: plastic, series installation, installation width 1 HP. Control and display elements: 2 buttons and 3 LEDs (multicolor), KNX learning button with LED. Ethernet: 10BaseT, 5 KNXnet/IP tunnel connections. KNX: Medium IP/TP, filter table 8kByte (64k group addresses). Power supply: via KNX bus, approx. 15 mA. Connections: KNX connection terminal, LAN connection socket RJ-45. NOTE: Replaces KNX IP Interface 730.]]>
