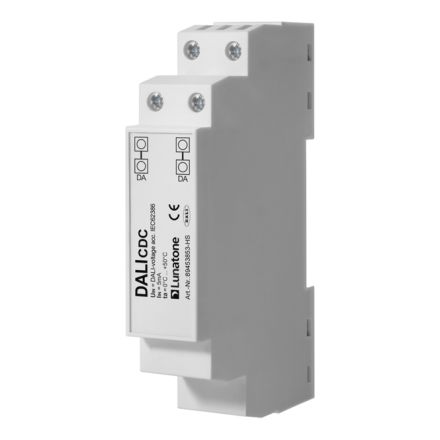

![CDATA[The DALI CDC enables the color temperature and brightness of DALI DT8 lights to be adjusted depending on the time of day in accordance with the circadian daylight cycle. Overview: - Control of DALI DT8 lights (Mode Tc) - Adaptation to the biorhythm - Summer / winter time switchover adjustable - Configurable scene behavior and brightness progression - Setting via DALI Cockpit software tool - Direct supply via the DALI bus - Internal battery for time - Easy installation using DALI double terminal. Technical data: DALI output, voltage range 9.5Vdc to 22.5Vdc, current consumption DALI 5mA, insulation data in accordance with IEC62386, operating temperature 0 to +50 degrees Celsius, protection class II, housing protection class IP40, terminal protection class IP20, real time clock (accuracy) quartz-precise (~20ppm), connection type screw terminal, connection capacity 0.5 to 2.5 mm².]]>
