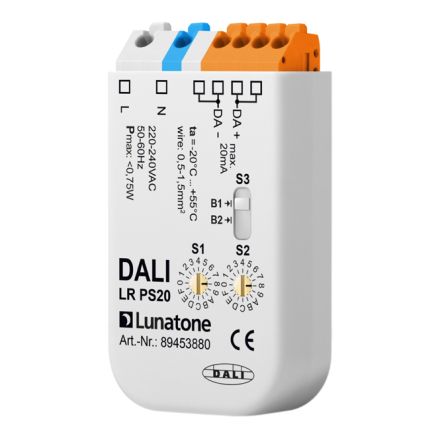

![CDATA[Compact control module for automatic power reduction / night-time reduction in brightness. Integrated bus supply (20 mA) for up to 7 standard DALI loads, expandable for up to 64 loads with a DALI Expander. Supports 2 operating modes: B1: Power reduction via mains or control phase B2: Power reduction based on virtual midnight calculation. Settings via rotary and slide switches. Suitable for installation in electrical installation boxes and integration in protection class II devices. Technical specifications: Ambient temperature: -20 to +55 °C Protection class: IP20 Max. connecting wire cross-section: 1.5mm² Installation: box installation Electrical data: Supply voltage: 230V AC Max. input current: 3 mA Galvanic isolation: between DALI output (20 mA) and 230V input Output: DALI, Imax = 20 mA Housing: Length: 59 mm, width: 33 mm, height: 15 mm, color: gray.]]>
