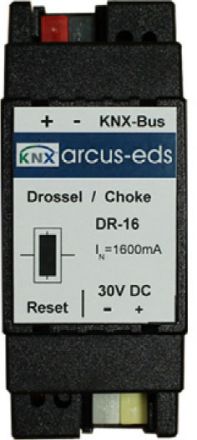

![CDATA[The KNX choke DR16 is used to decouple the EIB/KNX bus line from the power supply and is designed for DIN rail mounting. KNX devices with a total current consumption of 1600mA can be connected. The bus line can be disconnected from the power supply for approx. 10 seconds using the reset button. The connected bus devices then start working again. Technical data Nominal voltage: 24 VDC Nominal current: 1600 mA Operating temperature: -25 - +55 degrees C Input: EIB 2-pin terminal (white/yellow) Output: EIB 2-pin terminal (red/black) Dimensions: 2 TE (35 mm) Protection class IP: IP20]]>
