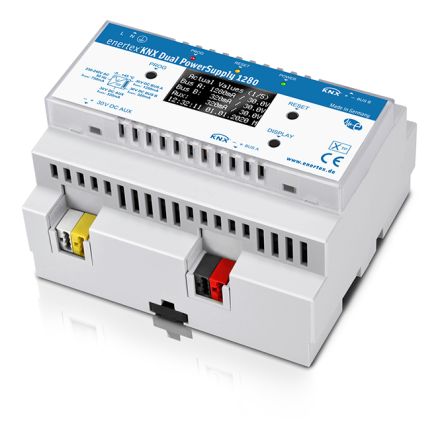

![CDATA[KNX power supply with one output to supply one KNX line with 1280 mA, another KNX line with 320 mA and an additional 30 V auxiliary power supply with 320 mA. Device properties: - independent current limitation for each output to protect against overload and short circuit - integrated bus coupler with measurement and diagnostic functions - bus coupler with support of the KNX Data Secure protocol - triggering a bus reset via communication object on the bus - integrated timer Housing: - DIN rail housing with 6 HP Power supply / connections: - mains connection: 230 - 240 VAC / 50 Hz, max. 750 mA - KNX connection: 30 VDC / 1280 mA - additional KNX connection: 30 VDC / 320 mA - auxiliary voltage connection: 30 VDC / 320 mA Displays and operation: - display to show the bus currents, bus voltages and device parameters - LED for programming and reset - programming, reset and display buttons to control the display]]>
