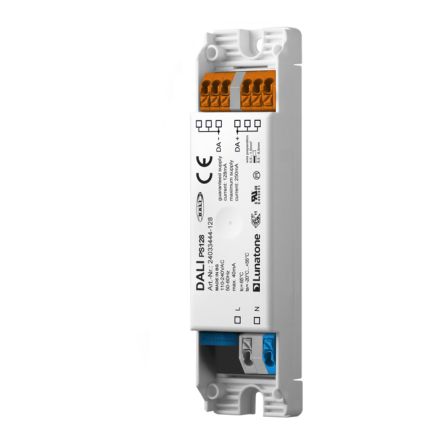

![CDATA[The DALI PS supplies the DALI bus system with the necessary energy. Standard-compliant voltage as well as current limitation and timing ensure reliable bus communication. An entire DALI line can be supplied with an output current of up to 250mA. For example, up to 64 addressable devices and a further 30 control modules (DALI sensors, MC, touch panel) can be connected up to a total load of 200mA. Technical specifications: Ambient temperature: -20 degrees Celsius to +55 degrees Celsius Protection class: IP20 Connection wire cross-section: max. 1.5mm² Installation: Ceiling installation Function: Device type: DALI bus supply Electrical data: Supply: 110V/240V AC 50/60Hz Output current: 150mA/128mA guaranteed max. connection current: 40mA (at 110V) / 20mA (at 240V) Rated power: 4W Output: DALI Housing and dimensions: Length: 120mm Width: 30mm Height: 22mm Color: Gray For further information and data, please refer to the manufacturer's data sheet (under Documentation).]]>
