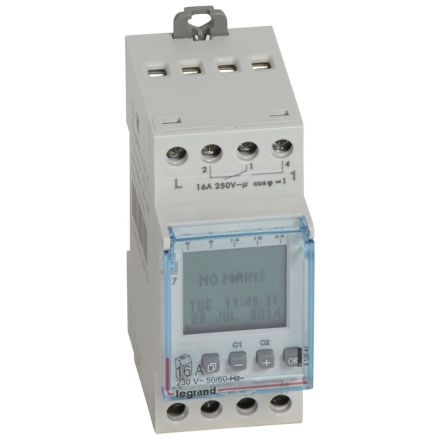

![CDATA[The Legrand AlphaRex³ D22 is a digital weekly timer with 2 channels and 56 switching programs (28 per channel). It operates with an operating voltage of 230 V and a frequency of 50/60 Hz. The program is created directly on the device or via the PC with the AlphaSoft software and a PC adapter (412873). The functions include permanent ON/OFF, a holiday program, a random program and a 1-hour test. The clock offers a PIN code lock, an operating hour counter, backlight and automatic summer/winter time changeover. With a power reserve of 5 years and an accuracy of ±0.1 sec./day, it is extremely reliable. The shortest switching time is 1 second and the switching outputs are configured as 2 changeover contacts. It is mounted on DIN rails and the device has an IP20 protection class. The dimensions are 35.6 mm wide, 83 mm high and 60 mm deep. It is halogen-free and suitable for temperatures from -20 to 55 °C.]]>
