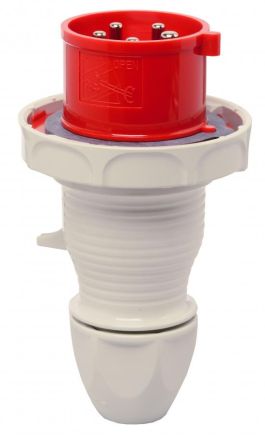

Walther 219SL 5x16A screwless CEE plug

Walther 219SL 5x16A screwless CEE plug

In stock

SKU: 485856

Price on request

€21.38

€0

Into a basketIn the basketGo

Overview

WALTHER plug 16A 5P 400V 6h IP67, made of PA6 material, screwless, with insulation displacement technology, and external cable gland, increased safety thanks to injected 2K seal.

Property	Value
IEC current:	16 A
Number of poles:	5
Voltage according to EN 60309-2:	400 V (50+60 Hz) red
UL/CSA current (if UL version required):	20 A
Identification color:	red
Phase inverter:	no
Protection class (IP):	IP67
Connection technology:	screwless terminal
Cable entry:	screw connection
Plug direction:	straight
Time position:	6 h
Material:	plastic
Military version:	no

Characteristics

Phase inverterNo

HAB219SL 5x16A screwless

ManufacturerWalther

HAN219SL

GTIN4015609544943

Connection technologyScrewless terminal

IEC current16A

Cable entryScrew connection

Identification colorRed

Military versionNo

Number of poles5

IP protection)IP67

Voltage according to EN 60309-2400 V (50+60 Hz) red

Plug directionStraight

UL/CSA current rating (if UL version required)20A

Time position6 hours

MaterialPlastic
