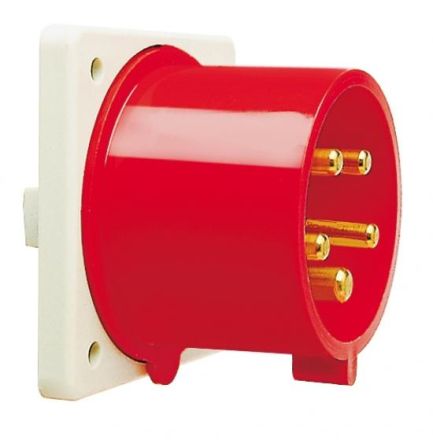

Walther 635 32A 5P 400V 6h IP44 straight, flange appliance plug

Walther 635 32A 5P 400V 6h IP44 straight, flange appliance plug

In stock

SKU: 485869

Price on request

€31.19

€0

Into a basketIn the basketGo

Overview

WALTHER panel-mounted device plug 32A 5P 400V 6h IP44, straight, made of PA6 material, with screwed-on flange, flange dimensions 80x80mm, fastening dimensions 60x60mm

Property	Value
IEC current:	32 A
UL/CSA current (if UL version required):	30 A
Number of poles:	5
Connection technology:	screw terminal
Plug direction:	straight
Voltage according to EN 60309-2:	400 V (50+60 Hz) red
Time setting:	6 h
Identification color:	red
Protection class (IP):	IP44
Material:	Plastic
Phase inverter:	no
Design:	Appliance plug
Military version:	no
Rated voltage:	346 to 415 V
Rated frequency:	60 Hz

Characteristics

Rated frequency60 Hz

Phase inverterNo

HAB635 32A 5P 400V 6h IP44 straight, flange

ManufacturerWalther

HAN635

GTIN4015609000975

Connection technologyScrew terminal

DesignAttachment plug

Rated voltage346 to 415 V

IEC current32 A

Identification colorRed

Military versionNo

Number of poles5

IP protection)IP44

Voltage according to EN 60309-2400 V (50+60 Hz) red

Plug directionStraight

UL/CSA current rating (if UL version required)30A

Time position6 hours

MaterialPlastic
